Saturday, December 4, 2010

Dual Band Trap Dipole 40/17

Due on the unforeseen circumstances, i have to bring down my Tribander Trap Dipole (40/20/10) & change to new one..do this Dipole with patient today, really give me very nice VSWR, which is value 1:1 from 7.000mhz to 7.090mhz..very happy with this result..waiting for RST from any stations soon..the theoretically on 40m (7.000mhz) really impressed (no tuner) & on 17m (18.150mhz) the VSWR is 1.6:1 & still ok..traps design using Coaxial Trap Design to get the resonant on 17m..now ready to hunting on 17m..hi hi..hope to see you soon at 17m band..

Coaxial Trap Design software

RF Choke 1:1 'ugly balun'

View inside Trap

Traps

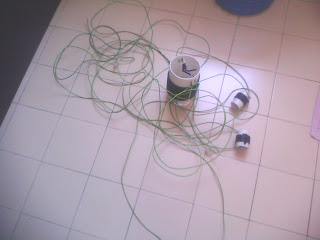

Overall

RF Choke 1:1 'ugly balun' in action

Dipole on the air

lovely Tribander Trap Dipole



Formula Calculations as follow :

A = 72 / Mhz (72/18.150 = 3.96m)
B = 72 / Mhz x 0.83 (72 / 7.100 x 0.83 = 8.41m)
C = B - A (8.41 - 3.96 = 4.45m)
Trap Design = 5turns RG58 on 40mm dia. pvc pipe


video

VSWR on 7.043mhz = 1:1, 7.130mhz = 1.2:1

73/88 de 9M2ODY
