***de 9 Mexico 2 Ocean David Yesterday***
"Work active at 10m, 20m, 30m, 40m, 80m & also 2m band..all band worked at FM, SSB & PSK31 also CW modes..hpe can see u down the log & highly appreciated to work with me at the band"
"I'm worked seriously at 10m, 20m & 40m on my HF mobile station right now, please do not hesitate to answer if u hear my call, i'm always calling CQ DX during mobile"

Wednesday, December 22, 2010

Video

video

Many thanks to 9m2zak for recording this video for my audio set up..until now, still fine tune what the best audio for my set up..anyway, happy watching this video..& really appreciated if have any stations can record my audio & send to my email for my collections..

73/88 de 9M2ODY

Sunday, December 19, 2010

2 Nights

Experience 2 nights worked with Africa (ZS) stations, really nice because band really open between West Malaysia & Africa..sometimes penetrate to PY stations also..have no idea because Sunspot (SSN) doesn't show any activities but it's work..band changing very fast plus sometime coming with high noise..anyway, it really nice to make contact with Africa & Brazil station on 20m band..thanks also for nice QSO..


StationFlagsStart TimeBandModeRST s/r
9M2ODY RI1ANC/A European Russia 2010-12-19 16:3120mUSB 59 59
9M2ODY ZS6VOL South Africa 2010-12-19 16:0320mUSB 59 58
9M2ODY ZS5GB South Africa 2010-12-19 15:5820mUSB 59 59
9M2ODY ZS6AGC South Africa 2010-12-19 15:5620mUSB 59 59
9M2ODY ZS4PJ South Africa 2010-12-19 15:5120mUSB 59 57
9M2ODY ZS1WE South Africa 2010-12-19 15:4920mUSB 59 59
9M2ODY ZS4PP South Africa 2010-12-19 15:4720mUSB 59 59
9M2ODY ZS4LD South Africa 2010-12-19 15:4220mUSB 59 59
9M2ODY ZR4FM/M South Africa 2010-12-19 15:3920mUSB 59 59
9M2ODY ZS8M Prince Edward & Marion Is. 2010-12-18 16:3920mUSB 59 59
9M2ODY ZS5CD South Africa 2010-12-18 16:3120mUSB 59 59
9M2ODY ZS1DDK South Africa 2010-12-18 16:2920mUSB 59 59
9M2ODY V5/DK2WH Namibia 2010-12-18 16:2420mUSB 59 58
9M2ODY FR1LB Reunion I. 2010-12-18 16:1220mUSB 59 55
9M2ODY ZD9GI Tristan da Cunha. 2010-12-18 16:0620mUSB 59 59
9M2ODY ZS6TAF South Africa 2010-12-18 16:0120mUSB 59 59
9M2ODY ZS4S South Africa 2010-12-18 15:5820mUSB 59 59
9M2ODY ZS4L South Africa 2010-12-18 15:5520mUSB 59 59
9M2ODY ZS6DAY South Africa 2010-12-18 15:5220mUSB 59 58
9M2ODY ZS5LG South Africa 2010-12-18 15:4920mUSB 59 59
9M2ODY 5R8UI Madagascar 2010-12-18 15:4620mUSB 59 59
9M2ODY ZS5RH South Africa 2010-12-18 15:3920mUSB 59 58
9M2ODY ZS5DM South Africa 2010-12-18 15:2820mUSB 59 59
9M2ODY ZS5JY South Africa 2010-12-18 15:2420mUSB 59 59
9M2ODY PY2WO Brazil 2010-12-18 15:1920mUSB 59 57
9M2ODY ZS1D South Africa 2010-12-18 15:1420mUSB 59 59
9M2ODY ZS1TBS South Africa 2010-12-18 15:0920mUSB 59 59



73/88 de 9M2ODY

Friday, December 17, 2010

ESSB??

ESSB stand for Extended for SSB mode..normally, the audio will be at range 2.0khz - 2.5khz..but with ESSB, can be more wide..like example up to 5.0khz & all this must be comply with rules by ITU..see table below :

STANDARD SSB MODES
(Subjective Descriptions)
BANDWIDTH
FREQUENCY RESPONSE
@ -6dB Points
ITU DESIGNATOR
(Technical Descriptions)
Standard SSB (Narrow)
2 kHz
400 Hz ~ 2.4 kHz
2K00J3E
Standard SSB (Medium)
2.4 kHz
300 Hz ~ 2.7 kHz
2K40J3E
Standard SSB
(Wide-1)
2.7 kHz
200 Hz ~ 2.9 kHz
2K70J3E
Standard SSB
(Wide-2)
2.9 kHz
100 Hz ~ 3.0 kHz
2K90J3E

EXTENDED SSB MODES
(Subjective Descriptions)
BANDWIDTH
FREQUENCY RESPONSE
@ -6dB Points
ITU DESIGNATOR
(Technical Descriptions)
eSSB (Narrow-1)
3 kHz
100 Hz ~ 3.1 kHz
3K00J3E
eSSB (Narrow-2)
3.5 kHz
80 Hz ~ 3.58 kHz
3K50J3E
eSSB (Medium-1)
4 kHz
50 Hz ~ 4.05 kHz
4K00J3E
eSSB (Medium-2)
4.5 kHz
50 Hz ~ 4.55 kHz
4K50J3E
eSSB (Wide-1)
5 kHz
50 Hz ~ 5.05 kHz
5K00J3E
eSSB (Wide-2)
6 kHz
50 Hz ~ 6.05 kHz
6K00J3E
Copyright © 2003

Logically, all sound/audio equipment have humming..& how to cut this humming from going to the transceiver while TX..in this case, i have made one box, we called 'iBox'..all humming will be cut by some electronics inside the box..at the first i read at manual Equalizer, its will produce about +/-18db humming..& i was thinking how to make this noise not coming to my transceiver..have a very nice iBox done by W2IHY..it's so great ibox but i think another way how to homebrew it..with some idea given from somebody..i go to electronic shop to buy the thing..lucky they have it..i done the iBox about 1 hour..then i try..fuhhh!!! the is no humming/RF coming..this iBox cut about +/-23db..very happy & finally try to get 9M2ZAK to assist me to setting the audio..thanks ZAK for help..hehe..i will upload here some audio recorded done by ZAK soon..




4ch Mixer, 31 Band Equalizer & Audio Balancer

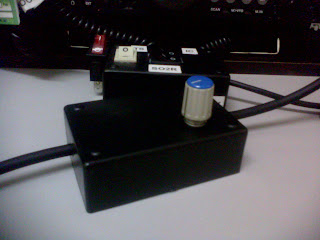

iBox - cut +/-23db

View inside iBox

iBox by W2IHY

iBox by 9M2ODY..hi hi

Overall view

Antenna farm

Sunday, December 12, 2010

Some DX Reports

DX at early evening (MST time)..lately, band changing very fast..started 1200z, band very nice open to EU & i think can stand only 3hours..after that, can't hear anything..try & try to continue CQ DX again but no feedback..so, just rechew to find another stations..unfortunately, no body reply..below are some reports & the working conditions :

TRX : IC-718Dsp
Power : 70w
Antenna : DalBeam 6ele. Duo Monobander - 15m above ground


StationFlagsStart TimeBandModeRST s/r
9M2ODY A65BC United Arab Emirates 2010-12-12 15:1120mUSB 59 59
9M2ODY A41LD Oman 2010-12-12 15:0320mUSB 59 58
9M2ODY YB2IQ Indonesia 2010-12-12 14:5420mUSB 59 59
9M2ODY DK3EE Germany 2010-12-12 14:3220mUSB 59 55
9M2ODY S52V Slovenia 2010-12-12 14:1320mUSB 59 59
9M2ODY SV3AQR Greece 2010-12-12 14:0020mUSB 59 53
9M2ODY EA5/GM0OPK Spain 2010-12-12 13:5220mUSB 59 59
9M2ODY VU2MIK India 2010-12-12 13:0820mUSB 59 59
9M2ODY VU3BTP India 2010-12-12 13:0320mUSB 59 59
9M2ODY R3GG European Russia 2010-12-12 12:5820mUSB 59 59
9M2ODY VU2PT India 2010-12-12 12:5620mUSB 59 59
9M2ODY UA3ZNO European Russia 2010-12-12 12:5420mUSB 59 53
9M2ODY F6HQP France 2010-12-12 12:5120mUSB 59 54
9M2ODY LX1AX Luxembourg 2010-12-12 12:4520mUSB 59 59
9M2ODY HB9RDE Switzerland 2010-12-12 12:3720mUSB 59 59
9M2ODY UT5IF Ukraine 2010-12-12 12:3520mUSB 59 59
9M2ODY SV7CFC Greece 2010-12-12 12:3320mUSB 59 55
9M2ODY DL1GDS Germany 2010-12-12 12:3120mUSB 59 57
9M2ODY RW3XW European Russia 2010-12-12 12:2620mUSB 59 59
9M2ODY DL1LKR Germany 2010-12-12 11:5920mUSB 59 59
9M2ODY VK4LDX/P Australia 2010-12-12 05:5115mUSB 59 59


73/88 de 9M2ODY
