Friday, November 25, 2011

40m Double Bazooka

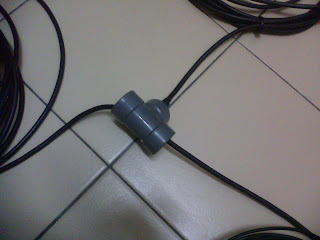

1:1 Air Wound Choke

Feeding Point

40m Double Bazooka

Overall View

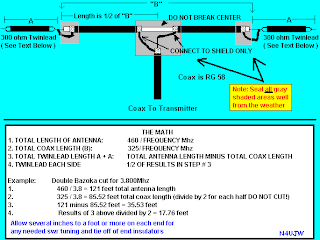

Today I have done 40m Double Bazooka antenna to replace 40m Delta loop position..Right now on-doing to dry-run this antenna.. receiving side very good, noise level also very low, can say only S1-2..very compatible to copy any weak stations..hi hi..the Delta Loop keep in store for time being to make sure this antenna can be utilize..Center frequency for this antenna is 7.060 Mhz.. The calculation as follow :

1. 460/7.060 = 65.15 ft (19.812 m)
2. 325/7.060 = 45.97 ft (14.012 m)
3. 65.15 - 45.97 = 19.03 (5.80 m)

Wish all of you all the best..Take care..

73/88 de 9M2ODY
